Bosch Ignition Distributor Specialist · Germany

Factory-Spec Bosch
Distributor Restoration,
Bench-Certified in Germany.

We restore your original Bosch distributor to OEM specification — complete disassembly, precision machining, advance curve calibration, and an 8,000 RPM bench test. Every unit ships back with a printed test certificate. Worldwide shipping from Germany.

Ship Your Distributor See the Process
8,000 RPM tested OEM certificate 100% Made in Germany Ships worldwide
Made in Germany

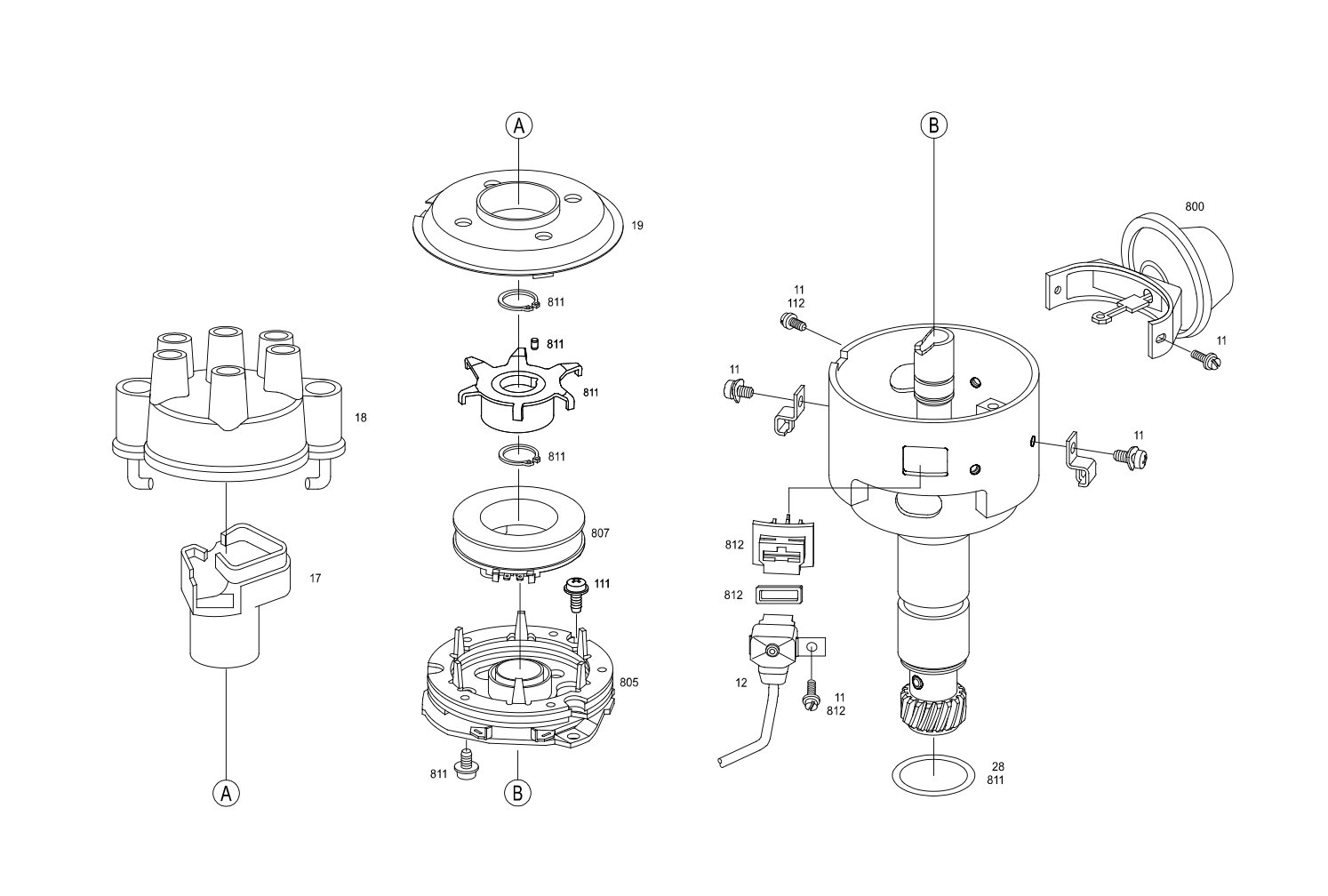

Bosch ignition distributor exploded technical diagram — all components including cap, rotor, advance weights, vacuum unit and drive gear
Technical exploded view · Bosch ignition distributor
🔬
8,000 RPM bench test
Every unit run to full speed, all parameters logged
📋
OEM test certificate
Printed protocol included with every restoration
Made in Germany
100% Made in Germany
Master craftsmen workshop, Germany
🌍
Ships worldwide
USA · UK · AUS · EU · and beyond
Bosch ignition distributor exploded view showing all internal components
Distributor shaft Shaft bushings Centrifugal weights Advance springs Vacuum advance Contact points Condenser Rotor & cap
What We Restore

The Precision Heart of Classic Ignition

The Bosch ignition distributor controls the firing sequence of your engine — distributing high-voltage current to each plug at exactly the right moment, while mechanically advancing timing in response to speed and load.

When it wears, the symptoms range from rough idle and misfire to power loss and difficulty starting cold. Most workshops fit an aftermarket unit. We restore your original — to factory specification, documented and certified.

Our core expertise is Bosch ignition distributors: the most widely fitted ignition system on European classic cars from the 1950s through the 1990s, and on many American V8 applications.

40+
Vehicle Makes
500+
Restored
20+
Countries
0.01
mm precision
The Process

From Diagnosis to Restoration —
Five Clear Steps, Fully Documented.

No surprises. No work begins without your written approval. Every cost is communicated before we proceed. Click each step to learn more.

Pricing & Transparency
Diagnostic bench test €129 incl. VAT
Non-refundable. Covers bench test & written protocol regardless of outcome.
Full restoration from €950 incl. VAT
Replacement parts & machining quoted separately after inspection.
What We Commit To
✓No restoration starts without your written approval
✓All costs communicated before any work begins
✓If you decline: unit returned, return shipping billed at cost
✓EU customers: no import duties on inbound or return
✓Non-EU: import duties in your country are your responsibility — we advise on customs declaration
✓Return shipping quoted & confirmed before dispatch
01
Book Diagnosis OnlinePortal · 5 minutes
02
Send Your DistributorAny carrier · worldwide
03
Testing & Protocol€129 · no obligation
04
Release QuoteWritten approval
05
Restoration & Return5–10 working days
01
Book Your Diagnosis Online

Select the Fixed-Price Diagnosis in our service portal, enter your vehicle make, model, year, and distributor part number, and pay directly online. You instantly receive your ticket number and secure packing instructions by email. No phone call, no waiting — the entire booking takes five minutes.

Online booking via service portal Pay the diagnostic fee directly Ticket number & packing guide by email Any vehicle, any country
Time required
5 min
Diagnostic fee
€129
Obligation
None
02
Send Your Distributor

After booking you receive all the information you need for safe shipping. Use any standard parcel carrier — DHL, FedEx, UPS, Royal Mail, USPS, Australia Post. Pack the distributor securely, insure it for its value, and send it to our workshop in Gundremmingen, Bavaria. Customers shipping from Germany receive a free prepaid shipping label.

Free label for German customers Any carrier · worldwide Insure for part value EU: no import duties Non-EU: import duties payable by customer — we advise
Transit Europe
1–3 days
Transit USA/UK
4–7 days
Destination
Bavaria, DE
03
Testing & Test Protocol

On arrival, your distributor goes immediately to the test bench. We measure axial shaft play, dwell angle, vacuum and centrifugal advance curves, and condenser capacity — every parameter compared against OEM specification, and all results documented. You receive a written test protocol and a detailed restoration quote within 2–3 working days.

The diagnostic fee (€129 incl. VAT) is paid at booking and applies regardless of your decision to proceed. If you choose not to proceed, we return your distributor — return shipping is billed separately at cost. No restoration work begins until you provide written approval of the quote.

Full bench measurement run Written diagnosis protocol Detailed restoration quote Diagnostic fee applies regardless of outcome
Diagnostic fee
€129
incl. VAT
Yes
Obligation
None
04
Release Your Quote — Restoration Begins

You receive your complete test protocol together with a binding quote for the required restoration. Once you release the quote in writing, we begin work immediately. Complete disassembly. Ultrasonic cleaning. Glass bead blasting. Every wear surface measured to 0.01 mm precision. Worn components replaced with OEM or NOS parts where available — otherwise machined in-house. All machining costs are included in the quote you approved. No additional charges without prior notification. Period-correct surface finish, reassembly, advance curve calibration to OEM specification.

Ultrasonic cleaning 0.01 mm precision measurement In-house parts machining Period-correct lacquer finish Advance curve calibration Express option available
Standard turnaround
5–10 days
Starting from
€950
Express
On request
05
Restoration & Return Shipping

After your approval we restore the distributor, carry out a final 8,000 RPM bench test, and return it to you. Your restored distributor arrives in protective packaging with a printed OEM-format test certificate documenting every measured parameter before and after restoration — a permanent record for your vehicle's history file. Typical workshop duration: 5–10 working days after payment received. Return shipping is confirmed and invoiced before dispatch.

8,000 RPM final bench test Before/after measurement protocol OEM-format test certificate Ready to install Return shipping quoted before dispatch
Turnaround
5–10 working days
Test speed
8,000 RPM
Warranty
Statutory
See It In Action

Bosch Distributor Restoration
— From Worn to OEM Specification

Watch our technicians work through a complete Bosch distributor restoration — disassembly, inspection, machining, calibration and bench test.

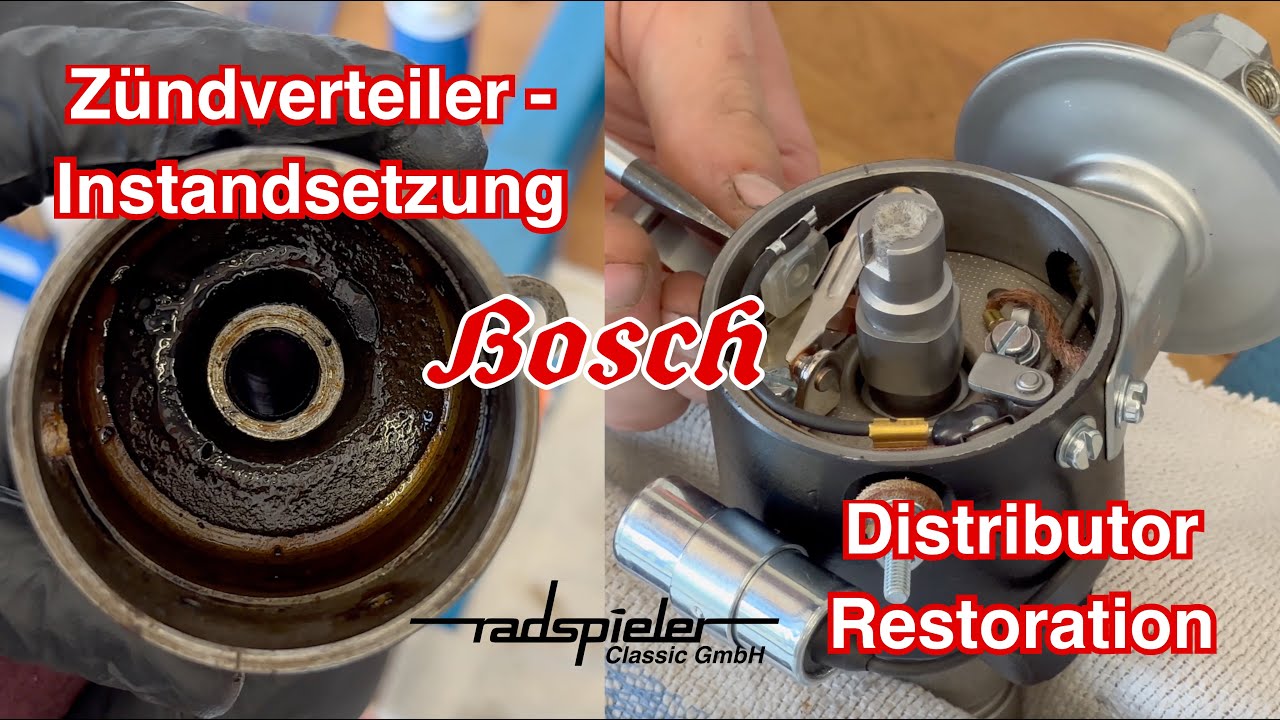

Bosch ignition distributor restoration process — Radspieler Ignition Germany
Click to play · No tracking until you click
By clicking play you load content from YouTube (Google LLC). YouTube's privacy policy applies.
The Proof

Every Restoration Ships with a Documented Test Record.

Every restoration ships with a printed test certificate documenting all measured parameters before and after — compared against original Bosch OEM specification. Few workshops worldwide carry out this level of documented bench validation as standard.

📊
Before & after measurement
Every parameter logged on arrival and after restoration — you see exactly what was wrong and what was corrected.
⚙️
OEM reference values
All results compared directly against original Bosch specification for your exact distributor model.
📁
Permanent vehicle record
The certificate belongs with the car — it proves authenticity and raises the vehicle's documented history and value.
Radspieler Ignition · Gundremmingen, Germany
Bench Test Certificate
✓ Passed
Porsche 911 SC 3.0L · 1980 · Distributor 0 237 302 014
Max. speed achieved 8,000 RPM ✓
Dwell angle 52.0° (spec: 52° ± 1°) ✓
Axial shaft play 0.04 mm (spec: ≤ 0.05 mm) ✓
Vacuum advance 14° @ 400 mbar ✓
Centrifugal advance curve OEM curve matched ✓
Condenser capacity 0.22 µF (spec: 0.20–0.24) ✓
Surface finish Period-correct lacquer ✓
Tested & signed off
Radspieler, Gundremmingen
OEM Certified
Worldwide Service

From the USA, UK or Australia — We've Done This Before.

Sending a precision part abroad sounds complicated. It isn't. Here's exactly how it works, and what you need to know.

✈️
"Can I really ship a part to Germany?"
Yes. We receive distributors from the USA, UK, Australia, Switzerland, and across Europe every week. Use any parcel carrier, declare it as "used car part for repair," insure for its value. We'll guide you through it with packing instructions after your ticket.
💬
"Is all communication in English?"
Yes. Our ticket system, quotes, and correspondence are all in English. The test certificate is issued in English. You will never need to navigate German bureaucracy.
💰
"Does it make financial sense with shipping costs?"
A quality aftermarket replacement distributor typically costs €400–900 and arrives uncalibrated to your specific engine's advance curve. A professionally restored original — calibrated to OEM specification and shipped with a documented bench test — is often comparable in price and demonstrably better in every measured parameter. Many customers ship from the USA, UK, and Australia precisely because this level of documented restoration is not available locally.
🔒
"What if something goes wrong in transit?"
We recommend insuring your outbound shipment for the replacement value of the part — our packing instructions are designed to protect the unit in transit. We photograph every distributor on arrival and before return dispatch. Return shipments are fully insured by us. In the event of transit damage, we assist with the insurance claim. We have not had a unit lost in return transit.
Your shipment journey
1
You open a ticket (5 min)
Receive packing instructions + ticket number
Day 1
2
You ship the distributor
Any carrier · worldwide · insured
Day 2–3
3
We diagnose & send a quote
€129 · written protocol · no obligation
Day 5–10
4
You approve · we restore
9-stage workshop process · 5–10 working days
Day 10–25
✓
Certified distributor arrives at your door
With OEM test certificate · ready to install
Day 25–35
Customers currently shipping from
🇩🇪 Germany🇬🇧 United Kingdom 🇺🇸 USA🇨🇭 Switzerland 🇦🇹 Austria🇫🇷 France 🇮🇹 Italy🇳🇱 Netherlands 🇸🇪 Sweden🇦🇺 Australia + worldwide
What customers say

Rated 5.0 on Google

★★★★★
5.0 · verified Google reviews See all reviews →
★★★★★

"Sent my Porsche 904 distributor from Switzerland — nobody else would touch it. Radspieler machined the worn bushing in-house and returned it with a complete OEM test protocol. Runs perfectly. Outstanding work."

Sulzberger
Switzerland
Porsche 904 GTS · 1964
★★★★★

"Shipped from the UK. Communication in English throughout, fast turnaround, and the test certificate is exactly what I needed for the car's history file. The engine idles smoother than it has in years."

Cunningham
United Kingdom
VW Scirocco · 1986
★★★★★

"My 1952 Mercedes Ponton had a rare pre-war-style distributor. After years of misfiring and rough running, the car starts first turn and runs like new. The printed test report documents everything. Exceptional."

Schmidt
Germany
Mercedes Ponton · 1952
★★★★★

"Sent my Porsche 930 Turbo distributor all the way from the US. The process was easy — the ticket form is clear, packing instructions were helpful, and they communicated in English throughout. Worth every cent."

D. Harrington
United States
Porsche 930 Turbo · 1986
★★★★★

"My W113 Pagode had been misfiring under load for two years. Two other shops failed to fix it. Radspieler found the worn shaft bushing immediately, machined a replacement, and the car now pulls cleanly to redline. Remarkable."

Glatz
Austria
Mercedes W113 Pagode · 1969
★★★★★

"My Maserati Indy has a very specific Bosch distributor — impossible to find as a replacement anywhere. Radspieler restored the original completely and the advance curve is spot on. Shipped to Italy without any issues."

Thiesen
Italy
Maserati Indy 4200 · 1970
★ Read all reviews on Google
Parts shop

Need Parts Only?
We Ship Those Too.

Not every distributor needs a full restoration. If you know what you need — condensers, contact sets, advance springs, shaft bushings, rotors, caps — our online parts shop ships worldwide direct from Germany.

All parts are sourced to original Bosch specification. Many are OEM or NOS stock. We do not sell generic aftermarket substitutes.

Visit Parts Shop → Not sure? Ask us
Available in our shop
Contact breaker sets In stock
Condensers (OEM spec) In stock
Advance springs & weights In stock
Distributor caps & rotors In stock
Vacuum advance units In stock
Shaft bushings (in-house) On request
Browse All Parts →
FAQ

Frequently asked questions

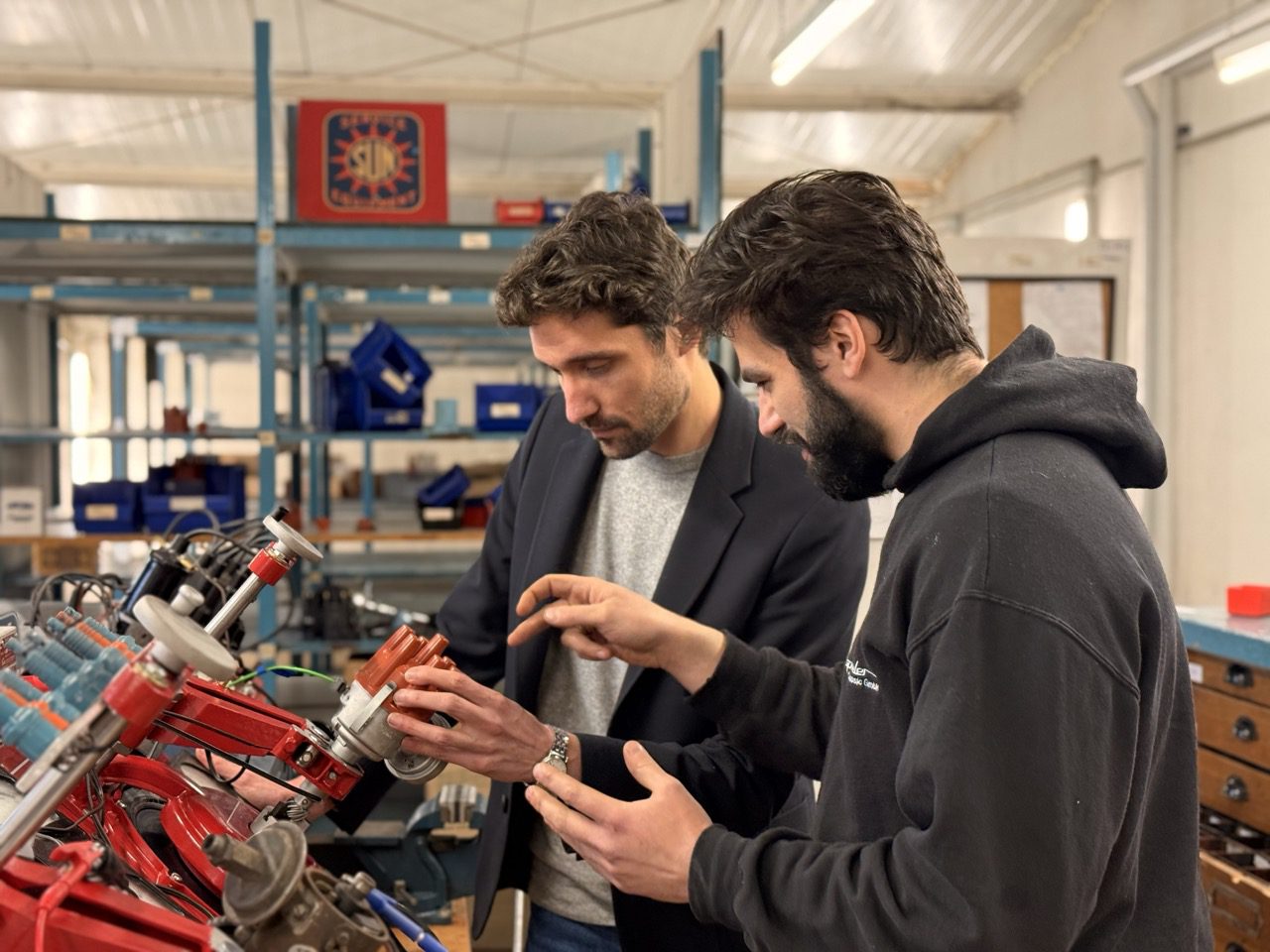

Radspieler Ignition workshop — two technicians inspecting Bosch ignition distributor at test bench, Germany

"We do not replace. We do not approximate. We restore to OEM specification — every parameter measured, every result documented."

Radspieler Ignition · Germany

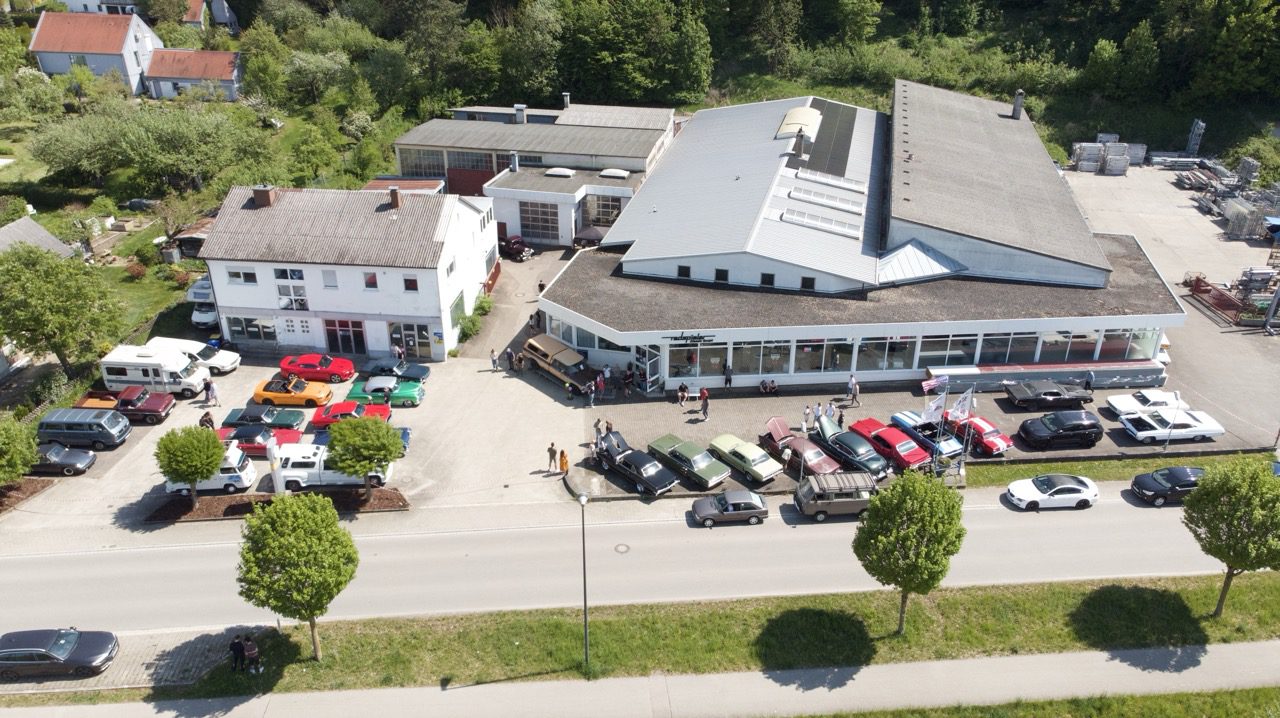

Radspieler Classic GmbH workshop headquarters — classic car restoration specialist, Germany
Start Today

Ready to Restore
Your Distributor?

Book your diagnosis online in five minutes. No phone call needed. You receive packing instructions immediately — no restoration starts until you approve the quote in writing.

Book Your Diagnosis →
Workshop address
Hauptstraße 6 · 89355 Gundremmingen · Germany
Phone
+49 8224 967 3789
Email
service@radspielerignition.com
Diagnostic service
€129 incl. VAT · no obligation
Full restoration from
€950 incl. VAT · parts quoted separately
Turnaround
5–10 working days after payment · express available
Parts shop
shop.radspielerclassic.com →
